The Essential Guide to Zinc Oxide Surge Arresters: Revolutionizing Overvoltage Protection for Modern Industry

In a large manufacturing plant humming with automated processes—machines constructing complex parts, belts moving items quickly, and networked controllers monitoring operations—a zinc oxide surge arrester might avert such disasters. Imagine a lightning strike on a nearby electrical grid. Delicate electronics might overflow without strong protection against voltage spikes, forcing activities to halt for weeks and causing large financial losses due to interrupted production. Proactive safeguards like surge arresters ensure continuity even when nature disrupts power stability.

This scenario isn’t hypothetical. This is often not a speculative circumstance. An assembly line of a U.S. automaker was halted by a temporal voltage surge in 2022, costing the company $2.3 million. These events highlight the requirement of surge assurance for businesses and appear it’s not fair a “nice-to-have.” Enter the zinc oxide surge arrester, a technological marvel that’s redefining resilience in electrical systems.

In this comprehensive guide, we’ll unpack why industry leaders are ditching older silicon carbide (SiC) models for ZnO-based solutions. From material science to real-world case studies, you’ll gain actionable insights to safeguard your operations.

The Evolution of Surge Arresters: From Silicon Carbide to Zinc Oxide

To completely get it the creation of zinc oxide surge arresters, let’s go back to the 1970s.  Back then, SiC arresters were the gold standard. These devices relied on air gaps and nonlinear resistors to divert surges. But they had glaring flaws:

• Slow response times (microseconds delay), leaving systems vulnerable.
• Degradation after repeated surges, requiring frequent replacements.
• Complex maintenance due to spark gaps that eroded over time.

Then came the 1980s breakthrough: researchers discovered zinc oxide’s unique electrical properties. Unlike SiC, ZnO could handle surges without gaps, thanks to its self-regulating resistance. Fast-forward to today, and over 85% of utilities globally use ZnO arresters, according to the Electric Power Research Institute (EPRI).

Why Zinc Oxide? The Material Science Behind the Magic

At the heart of every zinc oxide surge arrester lies a simple question: What makes ZnO so special? Let’s break it down:

1. Nonlinear Resistance: The Instant Guardian

Picture a bouncer at a club. Under normal voltage (the quiet hours), ZnO acts like a relaxed guard, letting minimal current pass. But when a surge hits (the rowdy crowd), it transforms into a hyper-vigilant protector, slashing resistance to divert excess energy within nanoseconds. This behavior stems from ZnO’s grain structure—tiny crystals separated by bismuth oxide layers that act like pressure-sensitive valves.

2. Thermal Resilience: Built for the Long Haul

Temperatures might reach 300°C during a surge. ZnO flourishes under strain, whereas lesser materials break. Because of its thermoelectric qualities, heat can be dispersed uniformly, avoiding “hot spots” that might lead to failure. “The atomic lattice of zinc oxide absorbs and redistributes thermal energy like a sponge, making it ideal for high-stress environments,” says Dr. Elena Rodriguez, an MIT materials expert.

3. Sustainability Meets Performance

Modern manufacturers like Leeydtech now blends ZnO with rare-earth dopants (e.g., praseodymium) to enhance durability. The result? Arresters that last 25+ years, even in coastal regions where salt corrosion ravages traditional models.

Key Characteristics of Zinc Oxide Surge Arresters: Beyond the Basics

While most guides list generic traits, let’s explore what truly sets ZnO arresters apart for industry pros:

1. Voltage-Current Curve: The Secret to Precision
   • Threshold Voltage: ZnO begins conducting at just 10% above normal voltage, compared to SiC’s 40%.
   • Leakage Current: <1 mA under normal conditions, minimizing energy waste.
2. Energy Absorption: The Heavyweight Champion
   A single ZnO block can absorb up to 40 kJ per kilogram—enough to handle a direct lightning strike. For perspective, that’s equivalent to detonating a stick of dynamite next to the arrester.
3. Fail-Safe Design
   Unlike gapped arresters, ZnO models fail open-circuit, preventing catastrophic short circuits. This “graceful degradation” gives engineers time to schedule replacements.
4. Compact and Modular

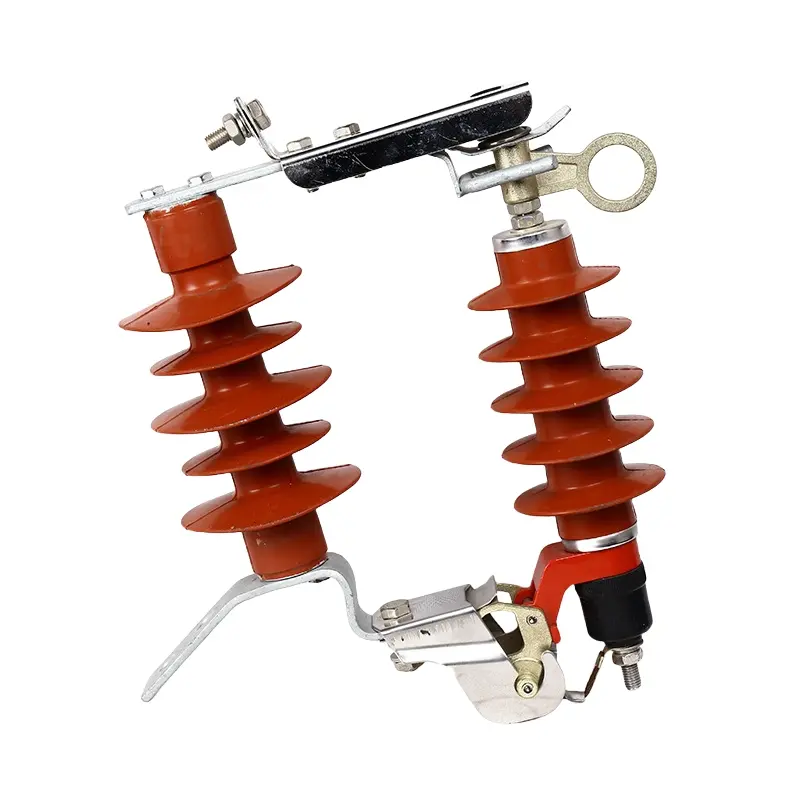

   Modern designs, like those from Leeydtech, stack ZnO discs in polymer housings. This modularity allows customization for voltages from 12 kV (wind turbines) to 800 kV (power grids).

Real-World Applications: Where Zinc Oxide Surge Arresters Excel

Case Study 1: Protecting Solar Farms in the Sahara

In Morocco’s Solar Complex, temperatures swing from 0°C to 50°C daily. Traditional arresters faltered under thermal cycling, but ZnO units from Leedytech reduced downtime by 70% in 2022.

Case Study 2: Securing Data Centers in Singapore

A Tier-IV data center faced weekly surges from tropical storms. After installing ZnO arresters, their mean time between failures (MTBF) jumped from 6 months to 3 years.

Emerging Uses

• EV Charging Stations: Preventing grid harmonics from damaging chargers.
• Smart Grids: Shielding IoT sensors in decentralized energy systems.

Maintenance Mastery: Prolonging Arrester Lifespan

Even the best equipment needs care. Follow this checklist to maximize your zinc oxide surge arrester investment:

• Quarterly Inspections

1. 1. • Check for cracks, pollution deposits, or moisture ingress.
      • Use infrared cameras to spot abnormal heating.

• Annual Testing

1. 1. • Measure leakage current with a microammeter. Values >500 µA signal aging.
      • Perform steep-front impulse tests to simulate lightning.

• Environmental Mitigation

1. • Install hydrophobic coatings in humid areas.
   • Use bird guards to prevent nesting (yes, birds love arrester platforms!).

Pro Tip: Partner with vendors offering predictive analytics.

FAQs: Answering Industry Professionals’ Top Questions

1. Why is zinc oxide used in surge arresters instead of other metals?
   Zinc oxide’s nonlinear resistance allows instant response to surges, unlike metals like titanium dioxide. Plus, its self-healing microstructure handles repeated surges without degradation.
2. How do ZnO arresters perform in extreme cold?
   In Arctic installations, ZnO maintains stability down to -60°C. The polymer housing (not the ZnO itself) usually limits the temperature range—opt for silicone rubber models in polar regions.
3. Can I retrofit old SiC arresters with ZnO units?
   Absolutely! Most ZnO arresters are drop-in replacements. Just ensure the system’s voltage rating matches—consult manufacturers like Leedytech for compatibility checks.

Conclusion: The Future of Surge Protection is Zinc Oxide

From solar farms to smart factories, zinc oxide surge arresters are the unsung heroes of electrical resilience. Their blend of speed, durability, and adaptability makes them indispensable in our increasingly electrified world.

As you modernize your infrastructure, remember: cutting corners on surge protection is a gamble no industry can afford. Explore advanced solutions like those from Leedytech—because downtime isn’t an option in 2023.
